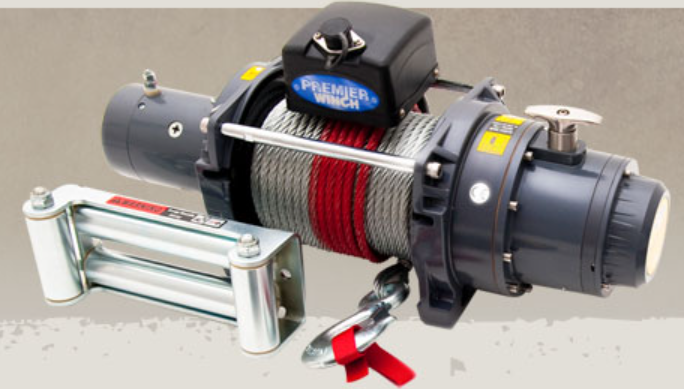

PREMIER ELECTRIC WINCH 24V 15,000LBS. DV-15000ES-24V
$3,499.00$3,199.00
1 in stock (can be backordered)
Delivery
For metro delivery:
Arrives 4-12 business days.
For regional delivery:
Arrives 5-15 business days.
Pickup
We offer FREE pickup for all online orders in Metro Stores. Express pickup available if the stock in store.
Features
Heavy duty series wound motor gives high torque and fast line speed.
3 stage planetary gearbox delivers the most reliable and durable performance even under worst conditions.
Patented automatic cone brake holds full load easily. The greater the load on the wire rope, the greater amount of brake force is applied by the mechanism.
Rotating ring gear free spool designed to pull and turn for rapid wire rope payout.
Heavy-duty sealed solenoid provides better water resistance and lower amp. draw.
Specifications
Line Pull
5,443 kg
Motor 12V
4,175 w
Motor 24V
2,684 w
Gear Train
3 stage planetary gears
Gear Ratio
216 : 1
Freespool
rotating ring gear
Brake
automatic, full load cone brake
Wire Rope Size
9.5 mm x 38 m
Wire Rope Type
galvanized aircraft A7 x19
Drum Size
89 mm x 206 mm
Mounting Bolt Pattern
254 mm x 114.3 mm x 165.1 mm
Line Pull and Rope Capacity
Layer of wire rope
Line Pull kg / lb
Total Rope on the Drum m/ft
1st Layer
5,443 / 12,000
6.2 / 20.3
2nd Layer
4,561 / 10,056
13.6 / 44.6
3rd Layer
3,926 / 8,657
22.1 / 72.5
4th Layer
3,446 / 7,599
31.9 / 105
5th Layer
3,070 / 6,770
38 / 125
Line Speed and Amp. Draw (1st layer of rope on the drum)
Line Pull kg/lb
Line Speed mpm/fpm
Amp. Draw 12V
Amp. Draw 24V
No Load
8.3 / 27
60
50
1,814 / 4,000
2.6 / 8.6
200
100
3,629 / 8,000
1.7 / 5.8
310
190
4,535 / 10,000
1.4 / 4.4
370
230
5,443 / 12,000
1.2 / 4
440
290
Standard Accessories
Detachable solenoid pack
Remote control
Wire rope with hook
Roller fairlead
1.8m (6′) 4 gauge battery lead
Handsaver strap
Optional Accessories
Cable tensioner
Mounting channel
Snatch block
Winch accessory kit
Package
Winch Weight
40 kg
Gross Weight
67 kg
Box Dimension
700 × 250 × 420 mm
Warning
Winches are not to be used for the lifting or moving of persons.
Warranty
Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. Wire ropes are not included under warranty.
